图解分布式训练（七）—— accelerate 分布式训练 详细解析

来自： AiGC面试宝典

宁静致远

2023年09月29日11:58

一、 为什么需要 accelerate 分布式训练？

PyTorch Accelerate 是一个 PyTorch 的加速工具包，旨在简化 PyTorch 训练和推断的开发过程，并提高性能。它是由 Hugging Face、NVIDIA、AWS 和 Microsoft 等公司联合开发的，是一个开源项目。

二、 什么是 accelerate 分布式训练？

2.1 accelerate 分布式训练 介绍

PyTorch Accelerate 提供了一组简单易用的 API，帮助开发者实现模型的分布式训练、混合精度训练、自动调参、数据加载优化和模型优化等功能。它还集成了 PyTorch Lightning 和 TorchElastic，使用户能够轻松地实现高性能和高可扩展性的模型训练和推断。

2.2 accelerate 分布式训练 主要优势

PyTorch Accelerate 的主要优势包括：

· 分布式训练：可以在多个 GPU 或多台机器上并行训练模型，从而缩短训练时间和提高模型性能；

· 混合精度训练：可以使用半精度浮点数加速模型训练，从而减少 GPU 内存使用和提高训练速度；

• 自动调参：可以使用 PyTorch Lightning Trainer 来自动调整超参数，从而提高模型性能；

· 数据加载优化：可以使用 DataLoader 和 DataLoaderTransforms 来优化数据加载速度，从而减少训练时间；

· 模型优化：可以使用 Apex 或 TorchScript 等工具来优化模型性能。

三、 accelerate 分布式训练 原理讲解？

3.1 分布式训练

分布式训练是指将一个大型深度学习模型拆分成多个小模型，在不同的计算机上并行训练，最后将结果合并，得到最终的模型。分布式训练可以显著减少模型训练的时间，因为它充分利用了多个计算机的计算资源。同时，由于每个小模型只需要处理部分数据，因此可以使用更大的批次大小，进一步提高训练速度。

3.2 加速策略

Accelerate提供了多种加速策略，如pipeline并行、数据并行等。

3.2.1 Pipeline并行

Pipeline并行是指将模型拆分成多个部分，在不同的计算机上并行训练。在每个计算机上，只需要处理模型的一部分，然后将结果传递给下一个计算机。这样可以充分利用多个计算机的计算资源，并且可以使用更大的批次大小，提高训练速度。Pipeline并行的缺点是，由于每个计算机只处理部分数据，因此每个计算机的结果都会有一些误差，最终的结果可能会有一些偏差。

3.2.2 数据并行

数据并行是指将数据拆分成多个部分，在不同的计算机上并行训练。在每个计算机上，都会处理全部的模型，但是每个计算机只处理部分数据。这样可以充分利用多个计算机的计算资源，并且可以使用更大的批次大小，提高训练速度。数据并行的优点是，每个计算机都会处理全部的模型，因此结果更加准确。缺点是，由于每个计算机都需要完整的模型，因此需要更多的计算资源。

3.2.3 加速器

加速器是指用于加速深度学习模型训练的硬件设备，如GPU、TPU等。加速器可以大幅提高模型的训练速度，因为它们可以在更短的时间内完成更多的计算。Accelerate可以自动检测并利用可用的加速器，以进一步提高训练速度。

四、 accelerate 分布式训练 如何实践？

4.1 accelerate 分布式训练 依赖安装

扫码

查看更

---

$ pip install accelerate==0.17.1

4.2 accelerate 分布式训练 代码实现逻辑

1. 导包

... from accelerate import Accelerator ...

2. Trainer 训练类编写

class Trainer: def init(self, args, config, model_engine, criterion, optimizer, accelerator):

    ...
    self.accelerator = accelerator

...

def train(self, train_loader, dev_loader=None):

    ...
    for epoch in range(1, self.args.epochs + 1):

        for step, batch_data in enumerate(train_loader):
        self.model_engine.train()
        logits, label = self.on_step(batch_data)
        loss = self.criterion(logits, label)
        self.accelerator.backward(loss)
        self.optimizer.step()
        self.optimizer.zero_grad()

    ...

1. main()函数编写

accelerator = Accelerator() args.local_rank = int(dist.get_rank()) print(args.local_rank) model_engine, optimizer_engine, train_loader_engine, dev_loader_engine = accelerator.prepare( model, optimizer, train_loader, dev_loader )

---

定义训练器

trainer = Trainer(args, config, model_engine, criterion, optimizer_engine, accelerator)

训练和验证

trainer.train(train_loader_engine, dev_loader_engine)

测试

...

需要重新初始化引擎

model_engine, optimizer_engine, train_loader_engine, dev_loader_engine = accelerator.prepare( model, optimizer, train_loader, dev_loader )

model_engine.load_state_dict(torch.load(args.ckpt_path)) report = trainer.test(model_engine, test_loader, labels)

if args.local_rank == 0: print(report)

4.3 accelerate 分布式训练 示例代码

import json import time import random import torch import deepspeed import torch.nn as nn import numpy as np import torch.distributed as dist from sklearn.metrics import classification_report from accelerate import Accelerator from torch.utils.data import DataLoader from collections import Counter from transformers import BertForMaskedLM, BertTokenizer, BertForSequenceClassification, BertConfig, AdamW

def set_seed(seed=123): "" 设置随机数种子，保证实验可重现 param seed: return:

---

random.seed(seed) torch.manual_seed(seed) np.random.seed(seed) torch.cuda.manual_seed_all(seed)

def get_data(): with open("data/train.json", "r", encoding="utf-8") as fp: data = fp.read() data = json.loads(data) return data

def load_data(): data = get_data() return_data = [] # [(文本，标签id)] for d in data: text = d[0] label = d[1] return_data.append("".join(text.split(" ")).strip(), label)) return return_data

class Collate: def _init_(self, tokenizer, max_seq_len, ): self.tokenizer = tokenizer self.max_seq_len = max_seq_len

def collate_fn(self, batch):
    input_ids_all = []
    token_type_ids_all = []
    attention_mask_all = []
    label_all = []
    for data in batch:
        text = data[0]
        label = data[1]
        inputs = self.tokenizer.encode_plus(text=text,
                                                                             max_length=self.max_seq_len,
                                                                             padding="max_length",
                                                                             truncation="longest_first",
                                                                             return_attention_mask=True,
                                                                             return_token_type_ids=True)
        input_ids = inputs["input_ids"]
        token_type_ids = inputs["token_type_ids"]
        attention_mask = inputs["attention_mask"]

---

input_ids_all.append(input_ids) token_type_ids_all.append(token_type_ids) attention_mask_all.append(attention_mask) label_all.append(label)

input_ids_all = torch.tensor(input_ids_all, dtype=torch.long) token_type_ids_all = torch.tensor(token_type_ids_all, dtype=torch.long) attention_mask_all = torch.tensor(attention_mask_all, dtype=torch.long) label_all = torch.tensor(label_all, dtype=torch.long) return_data = { "input_ids": input_ids_all, "attention_mask": attention_mask_all, "token_type_ids": token_type_ids_all, "label": label_all } return return_data class Trainer: def init(self, args, config, model_engine, criterion, optimizer, accelerator): self.args = args self.config = config self.model_engine = model_engine self.criterion = criterion self.optimizer = optimizer self.accelerator = accelerator

def on_step(self, batch_data): label = batch_data["label"].cuda() input_ids = batch_data["input_ids"].cuda() token_type_ids = batch_data["token_type_ids"].cuda() attention_mask = batch_data["attention_mask"].cuda() output = self.model_engine.forward(input_ids=input_ids, token_type_ids=token_type_ids, attention_mask=attention_mask, labels=label) logits = output[1] return logits, label

def loss_reduce(self, loss): rt = loss.clone() dist.all_reduce(rt, op=dist.ReduceOp.SUM)

---

rt /= torch.cuda.device_count() return rt

def output_reduce(self, outputs, targets): output_gather_list = [torch.zeros_like(outputs) for _ in range(torch.cuda.device_count())] # 把每一个GPU的输出聚合起来 dist.all_gather(output_gather_list, outputs)

outputs = torch.cat(output_gather_list, dim=0)
target_gather_list = [torch.zeros_like(targets) for _ in range(torch.cuda.device_count())]
# 把每一个GPU的输出聚合起来
dist.all_gather(target_gather_list, targets)
targets = torch.cat(target_gather_list, dim=0)
return outputs, targets

def train(self, train_loader, dev_loader=None): gloabl_step = 1 best_acc = 0. if self.args.local_rank == 0: start = time.time() for epoch in range(1, self.args.epochs + 1): for step, batch_data in enumerate(train_loader): self.model_engine.train() logits, label = self.on_step(batch_data) loss = self.criterion(logits, label) self.accelerator.backward(loss) self.optimizer.step() self.optimizer.zero_grad() loss = self.loss_reduce(loss) if self.args.local_rank == 0: print("【train】epoch: {}/{} step: {}/{} loss: {..6f)".format(epoch, self.args.epochs, gloabl_step, self.args.total_step, loss)) gloabl_step += 1 if self.args.dev: if gloabl_step % self.args.eval_step == 0: loss, accuracy = self.dev(dev_loader) if self.args.local_rank == 0: print("【dev】loss: {:.6f} accuracy: {:.4f)".format(loss, accuracy)) if accuracy > best_acc: best_acc = accuracy print("【best accuracy】{:.4f)".format(best_acc))

---

torch.save(self.model_engine.state_dict(), self.args.ckpt_path)

if self.args.local_rank == 0: end = time.time() print("耗时：{}分钟".format((end - start) / 60)) if not self.args.dev and self.args.local_rank == 0: torch.save(self.model_engine.state_dict(), self.args.ckpt_path)

def dev(self, dev_loader): self.model_engine.eval() correct_total = 0 num_total = 0 loss_total = 0. with torch.no_grad(): for step, batch_data in enumerate(dev_loader): logits, label = self.on_step(batch_data) loss = self.criterion(logits, label) loss = self.loss_reduce(loss) logits, label = self.output_reduce(logits, label) loss_total += loss logits = logits.detach().cpu().numpy() label = label.view(-1).detach().cpu().numpy() num_total += len(label) preds = np.argmax(logits, axis=1).flatten() correct_num = (preds == label).sum() correct_total += correct_num

return loss_total, correct_total / num_total

def test(self, model_engine, test_loader, labels): self.model_engine = model_engine self.model_engine.eval() preds = [] trues = [] with torch.no_grad(): for step, batch_data in enumerate(test_loader): logits, label = self.on_step(batch_data) logits, label = self.output_reduce(logits, label) label = label.view(-1).detach().cpu().numpy().tolist() logits = logits.detach().cpu().numpy() pred = np.argmax(logits, axis=1).flatten().tolist() trues.extend(label) preds.extend(pred) # print(trues, preds, labels) print(np.array(trues).shape, np.array(preds).shape) report = classification_report(trues, preds, target_names=labels)

---

return report

def build_optimizer(model, args): no_decay = ['bias', 'LayerNorm.weight'] optimizer_grouped_parameters = [ {'params': [p for n, p in model.named_parameters() if not any(nd in n for n in no_decay)], 'weight_decay': args.weight_decay}, {'params': [p for n, p in model.named_parameters() if any(nd in n for n in no_decay)], 'weight_decay': 0.0} ]

optimizer = AdamW(model.parameters(), lr=learning_rate)

optimizer = AdamW(optimizer_grouped_parameters, lr=args.learning_rate) return optimizer

class Args: model_path = "model_hub/chinese-bert-wwm-ext" ckpt_path = "output/accelerate/multi-gpu-accelerate-cls.pt" max_seq_len = 128 ratio = 0.92 epochs = 1 eval_step = 50 dev = False local_rank = None train_batch_size = 32 dev_batch_size = 32 weight_decay = 0.01 learning_rate=3e-5

def main(): # # 定义相关参数 set_seed() label12id = { "其他": 0, "喜好": 1, "悲伤": 2, "厌恶": 3, "愤怒": 4, "高兴": 5, } args = Args() tokenizer = BertTokenizer.from_pretrained(args.model_path) # # 定义相关参数 return

---

加载数据集

data = load_data()

取1万条数据出来

data = data[:10000] random.shuffle(data) train_num = int(len(data) * args.ratio) train_data = data[:train_num] dev_data = data[train_num:]

collate = Collate(tokenizer, args.max_seq_len) train_loader = DataLoader(train_data, batch_size=args.train_batch_size, shuffle=True, num_workers=2, collate_fn=collate.collate_fn) total_step = len(train_loader) * args.epochs // torch.cuda.device_count() args.total_step = total_step dev_loader = DataLoader(dev_data, batch_size=args.dev_batch_size, shuffle=False, num_workers=2, collate_fn=collate.collate_fn) test_loader = dev_loader

定义模型、优化器、损失函数

config = BertConfig.from_pretrained(args.model_path, num_labels=6) model = BertForSequenceClassification.from_pretrained(args.model_path, config=config) model.cuda() criterion = torch.nn.CrossEntropyLoss() optimizer = build_optimizer(model, args)

accelerator = Accelerator() args.local_rank = int(dist.get_rank()) print(args.local_rank) model_engine, optimizer_engine, train_loader_engine, dev_loader_engine = accelerator.prepare( model, optimizer, train_loader, dev_loader )

定义训练器

trainer = Trainer(args, config, config=config)

---

model_engine, criterion, optimizer_engine, accelerator)

训练和验证

trainer.train(train_loader_engine, dev_loader_engine)

测试

labels = list(label2id.keys()) config = BertConfig.from_pretrained(args.model_path, num_labels=6) model = BertForSequenceClassification.from_pretrained(args.model_path, config=config) model.cuda()

需要重新初始化引擎

model_engine, optimizer_engine, train_loader_engine, dev_loader_engine = accelerator.prepare( model, optimizer, train_loader, dev_loader ) model_engine.load_state_dict(torch.load(args.ckpt_path)) report = trainer.test(model_engine, test_loader, labels) if args.local_rank == 0: print(report)

_____

if name == 'main': main()

4.3 accelerate 分布式训练 运行

·方式一：

$ accelerate launch multi-gpu-accelerate-cls.py • 方式二： $ python -m torch.distributed.launch --nproc_per_node 2 --use_env multi-gpu-accelerate-cls.py

运行效果

【train】 epoch: 1/1 step: 1/144 loss: 1.795169 【train】 epoch: 1/1 step: 2/144 loss: 1.744665 【train】 epoch: 1/1 step: 3/144 loss: 1.631625 【train】 epoch: 1/1 step: 4/144 loss: 1.543691 【train】 epoch: 1/1 step: 5/144 loss: 1.788955

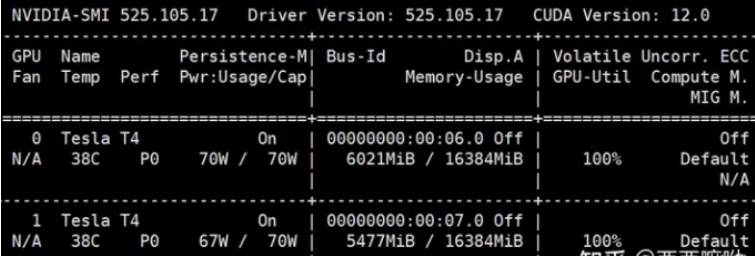

GPU 使用情况

---
